StrongPost®

The best crawl space support system available

This labor-saving, heavy duty column is designed to fit any crawl space to provide stability for sagging floors.

Fully Adjustable

Accommodate any floor joist combination with StrongPost saddle plate.

38,000 lbs Ultimate Load Capacity

*Allowable Load Capacity 16,000 lbs

4.5” Adjustment Range

Overall Height Variable from 10” to 91”

Lift and stabilize permanently with StrongPost™ galvanized steel floor supports.

Floors that sag can be a result of poor or settling soils, contractor mistakes, engineer/architect errors, material deterioration, as well as having too long unsupported span lengths. Deficient foundations leading to inadequate floor support is a very common problem. Sagging floors that may even become bouncy over time can be problematic for the homeowner. StrongPost™ is designed to fit any crawl space providing 25 tons of ultimate capacity.

Permanently stabilize interior crawlspaces with StrongPost™ steel piers. Fully adjustable, our vertical StrongPost™ steel column pier is a high-strength engineered, corrosion resistant support system sized for maximum support of your specific interior structural pier application. The StrongPost™ heavy-duty saddle plate is adjustable to accommodate any floor joist subfloor configuration. StrongPost™ steel column piers will deliver peace of mind and satisfaction like no other for you or the homeowner. Protect your greatest asset with the strongest and best!

SPREAD THE LOAD

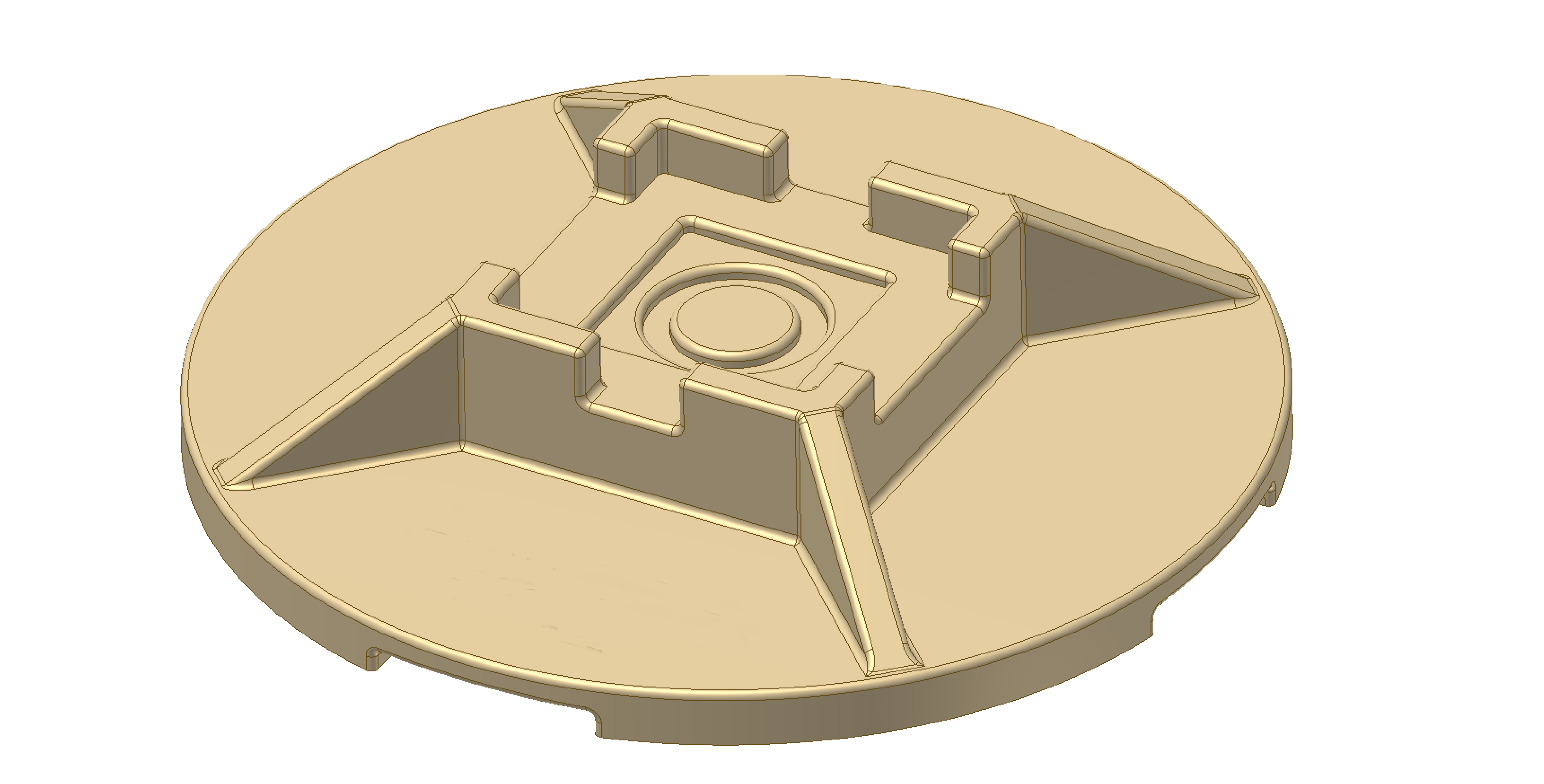

Use with PolyBase™

Top Termination Configurations

Top Termination Options

StrongPost™ systems can be configured with one of four top termination options, depending on the type of joist or support structure above. Each option is designed to provide a secure and straightforward connection.

Top Plate Support for Wooden Joists

StrongPost Top Plate Assembly

Saddle Bracket for Wooden Joists

Saddle Bracket Plate for Wooden Joists

I-Beam Saddle Strap for Metal Girders

I-BEAM SADDLE Strap FOR METAL GIRDERS

I-Beam Saddle Bracket

I-BEAM SADDLE BRACKET FOR METAL GIRDERS

DOWNLOADS

BENEFITS & FEATURES

  • Support loads of 38,000+ pounds (un-factored)

    (Unfactored)

  • Ease of Handling and Installation

  • Recycle Pipe Remnants

  • Engineered Solution

  • Galvanized Steel

  • No delays due to footing inspections

  • Corrosion Resistant

  • Termite Proof

  • Adjustable

  • Structurally Rated

Over 40,000 foundations restored and counting

STRDY is proud to work with the best distributors to provide you with on-demand inventory and expert assistance for your foundation repair projects.
